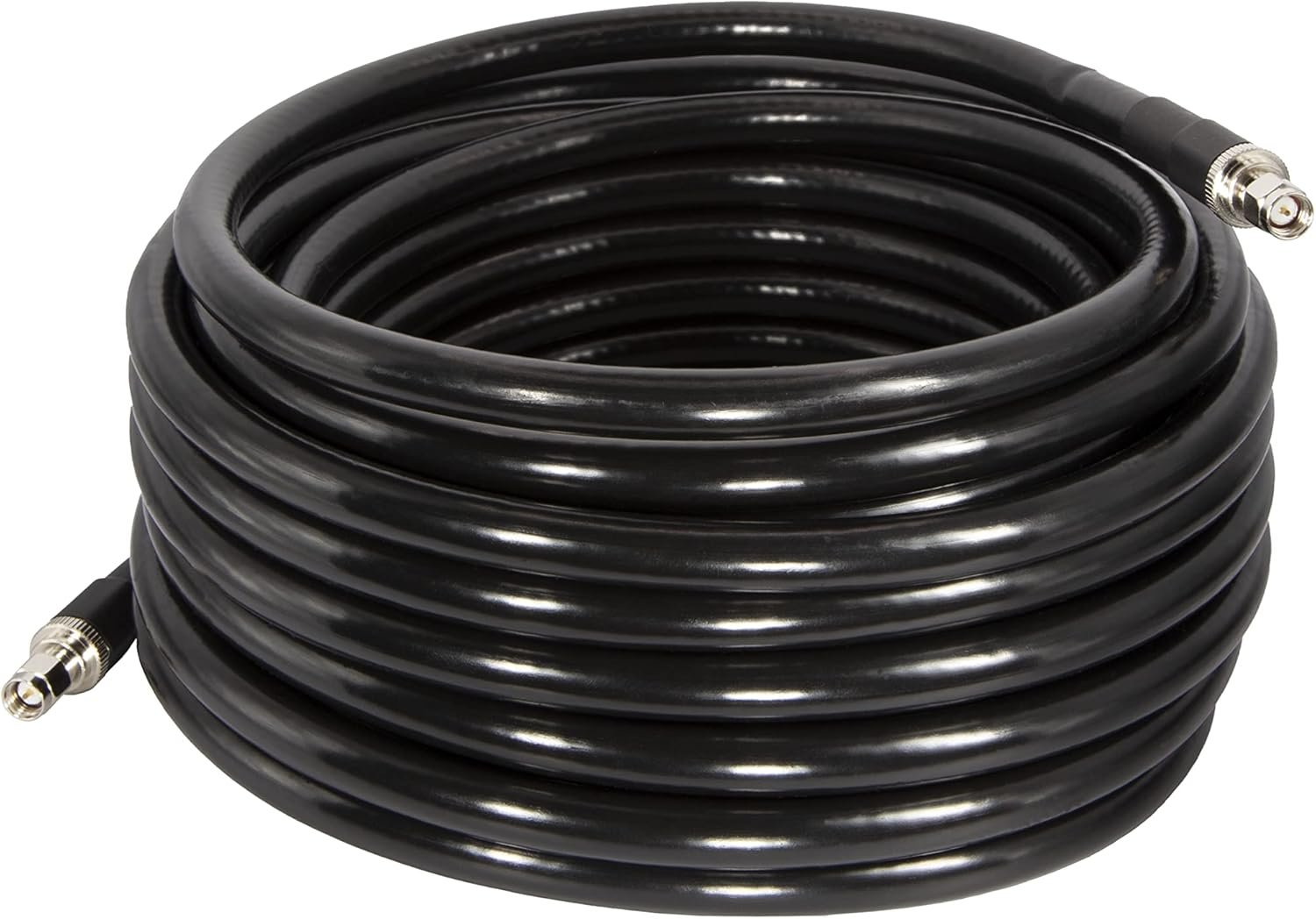

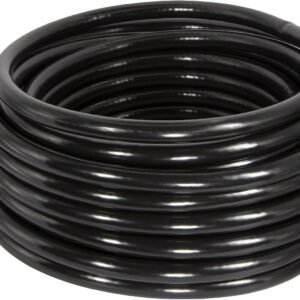

Ultra-Low Loss SMA Male to SMA Male LMR400 RF Coaxial Jumper Cable

Maximizing signal transfer efficiency across industrial-grade wireless links requires high-performance transmission lines engineered to stop high-frequency attenuation. The premium SMA male to SMA male LMR400 coaxial jumper cable from OHM Cables provides a heavy-duty, $50 \Omega$ optimized path designed explicitly to bridge 4G LTE/5G NR enterprise routers, GPS receivers, cellular signal amplifiers, and specialized microwave testing configurations. Featuring dual-male SMA threaded coupling interfaces on both ends, this high-spec interconnect links RF equipment enclosures directly to internal patch panels or lightning surge protectors while maintaining exceptional signal strength.

Standard light-gauge network patch cords—such as RG58, RG316, or RG174—introduce severe insertion losses when deployed at higher wireless bands like 2.4 GHz, 3.5 GHz (C-Band), or 5.8 GHz. High attenuation in thin jumpers turns expensive transmit energy into wasted thermal heat, causing sluggish throughput speeds, packet dropouts, and poor range. Swapping restrictive lines for an SMA male to SMA male LMR400 equivalent cable ensures that maximum radio energy passes safely to your antenna. Built with an industrial 10.3 mm outer form factor, an advanced double-shield design, and a solid low-resistance core, this jumper maintains excellent signal-to-noise ratios (SNR).

Core Engineering Advantages for Microwave Communication Arrays

Selecting the correct transmission geometry is vital for long-term network efficiency. The OHM Cables SMA male to SMA male LMR400 high-performance jumper provides massive structural benefits over standard braided lines:

1. Drastically Reduced High-Frequency Attenuation

Featuring a heavy-gauge 10.3 mm (0.405 inches) physical profile, our 400-series equivalent cable core drastically reduces resistive skin-effect losses. This structural thickness ensures that high-frequency waves travel smoothly along the outer layer of the core, delivering crisp data signals over mid-band 5G or high-capacity telemetry deployments.

2. Dual-Layer Shield Matrix for 90 dB Isolation

To preserve clean data metrics inside crowded server racks, industrial environments, or high-density radio stations, this SMA male to SMA male LMR400 jumper relies on an advanced shielding layer. An inner layer of 100% coverage bonded aluminum foil handles high-frequency electromagnetic interference (EMI), while a secondary heavy tinned copper wire braid delivers outstanding grounding and low-frequency shielding, achieving an isolation rating greater than 90 dB.

3. Ruggedized Industrial-Grade Terminations

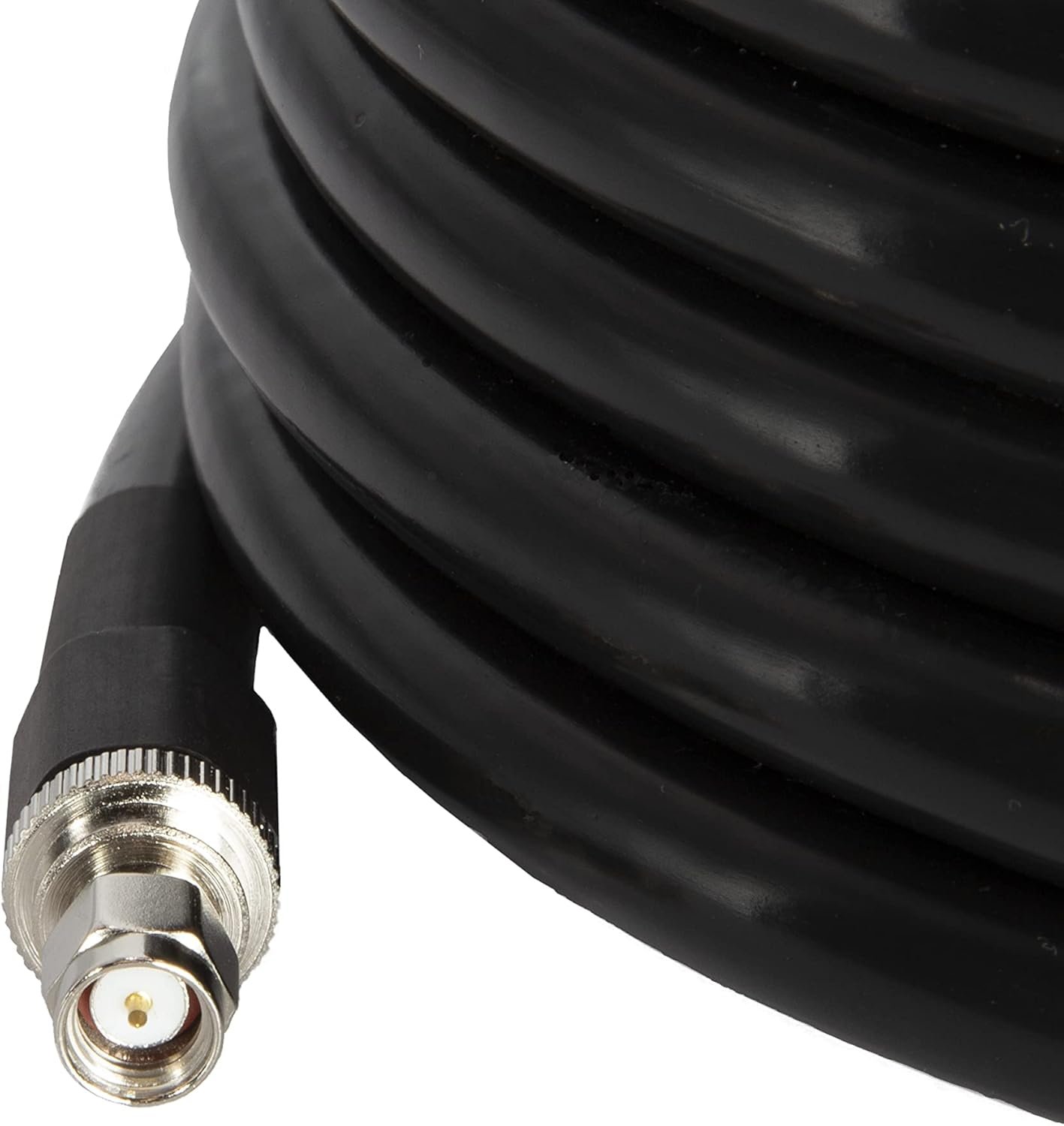

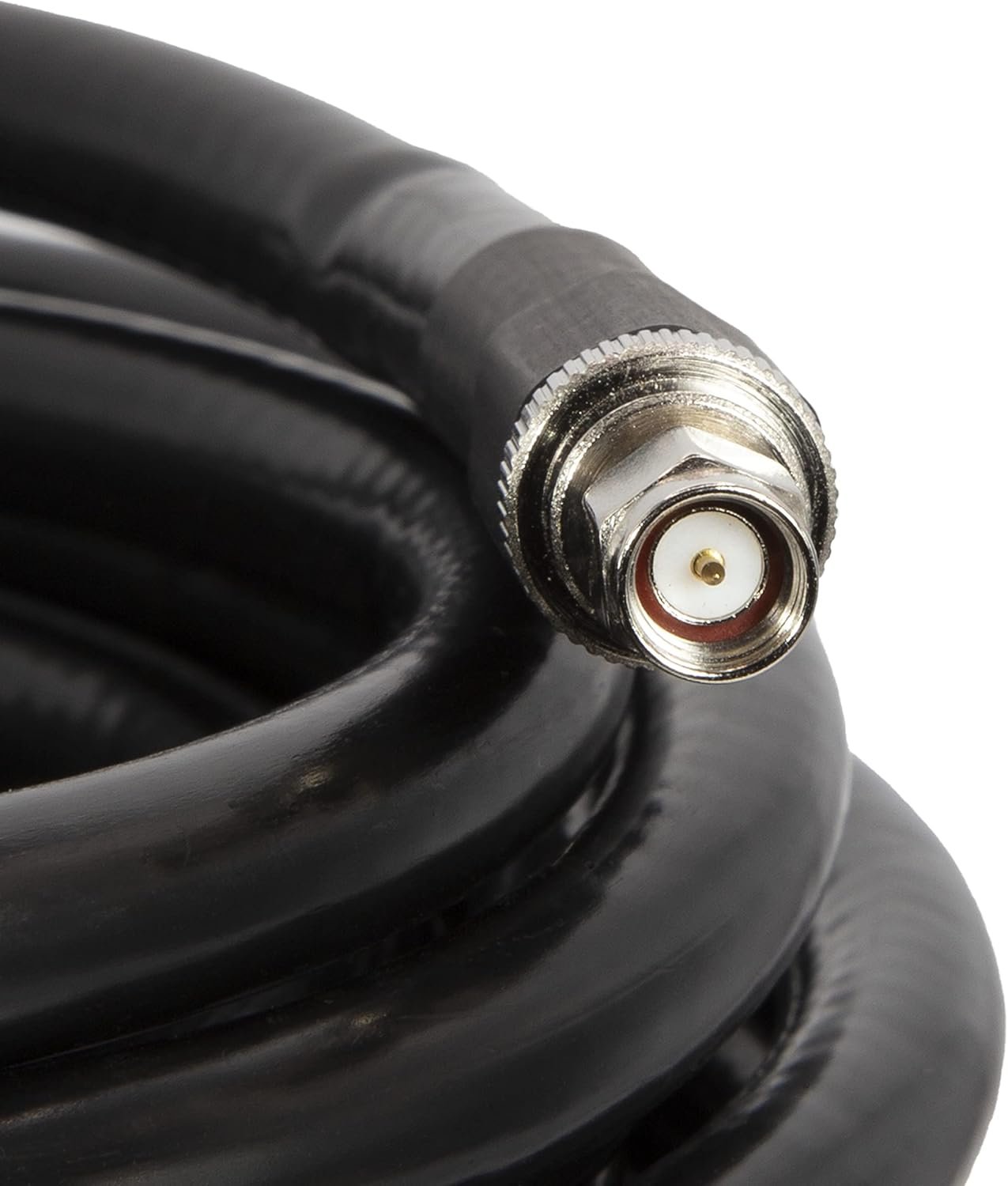

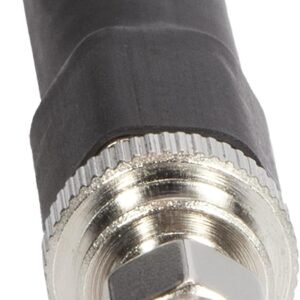

Weathering, wind load, and vibration can stress small connector interfaces over time. Our assemblies are built with high-grade, precision-machined solid brass SMA male plugs finished in non-tarnish nickel or premium gold plating, featuring standard internal threads and a sharp center pin. For complete weather protection, dual-wall adhesive-lined heat shrink covers the junction to seal out moisture and provide optimal strain relief.

Advanced Materials & Structural Reliability

Every element of the SMA male to SMA male LMR400 assembly is selected to guarantee steady electrical performance over years of continuous service. The outer jacket is constructed from a rugged, UV-stabilized Polyethylene (PE) compound. This heavy jacket material is engineered to withstand direct sunlight, extreme winter elements, and physical stress without turning brittle or cracking.

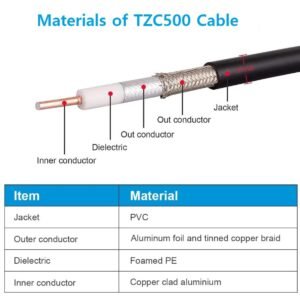

Internally, signals pass along a high-conductivity solid copper-clad aluminum center conductor insulated by a specialized gas-injected closed-cell foam polyethylene (FPE) dielectric. This microscopic foam architecture yields a high velocity of propagation (85%), allowing wireless signals to travel faster while lowering internal capacitive loss.

Common Field Applications and Deployments

• Enterprise 5G/4G Routers: Bridging cellular gateway ports to high-gain external patch panels or bulk antenna arrays.
• Helium & IoT Base Stations: Serving as a low-loss patch line to link internal long-range gateways to outdoor lightning arrestors.
• RF Test Lab benches: Providing highly stable, calibrated 50-Ohm reference links for spectrum analyzers and network measuring tools.
• GPS and Marine Navigation Systems: Linking heavy-duty coaxial down-leads directly to high-precision marine or industrial receivers.

Technical Specifications & Performance Metrics

Attenuation Profile (Loss per 10 meters / 32.8 feet)

• 900 MHz (Cellular / IoT Band): ~1.3 dB attenuation loss
• 1800/2100 MHz (Core 4G LTE Bands): ~2.0 dB attenuation loss
• 2400 MHz (Wi-Fi / ISM Band): ~2.4 dB attenuation loss
• 3500 MHz (5G C-Band / CBRS): ~2.9 dB attenuation loss
• 5800 MHz (High-Band Wi-Fi): ~3.9 dB attenuation loss

Why Choose OHM Cables Assemblies

At OHM Cables, we understand that an entire wireless installation is only as strong as its smallest interconnect point. We reject loose clearances, cheap flash platings, and low-grade steel braids that oxidize under outdoor exposure. Every SMA male to SMA male LMR400 extension lead is built using specialized pneumatic tooling, precision hex-crimped, and sealed with dual-wall adhesive heat shrink tubing. Our strict quality guidelines ensure every assembly is fully tested on vector network analyzers (VNAs) to verify perfect VSWR and low insertion loss before shipment.

Frequently Asked Technical Questions (FAQ)

What is the minimum bend radius of this LMR400 jumper cable?

For safe field routing, the minimum bend radius of this LMR400 equivalent cable is 25.4 mm (1.0 inch) for a single fixed bend, and 101.6 mm (4.0 inches) for repeated handling loops. Forcing the cable into tighter bends can warp the micro-cellular foam dielectric, change the 50-Ohm profile, and trigger immediate signal reflections.

Will this assembly work with RP-SMA (Reverse Polarity) connections?

No. This jumper features standard SMA male hardware (threads on the inside, center pin sticking out), which is the standard choice for industrial cell gateways, radio hardware, and commercial telemetry panels. Domestic consumer Wi-Fi routers often utilize Reverse Polarity (RP-SMA) ports. Make sure to inspect your equipment interface before finalizing your purchase.

Can this cable layout handle direct outdoor weathering?

Yes. The high-durability Polyethylene (PE) jacket is explicitly UV-stabilized to withstand direct sunlight, freezing sub-zero climates, and heavy precipitation over decades of constant exposure without breaking down or absorbing moisture.

Final Verdict for Infrastructure Systems & Network Engineers

Do not let high insertion losses or cheap, brittle jumper wires strangle your high-frequency cellular links and wireless networks. The OHM Cables premium SMA male to SMA male LMR400 low-loss extension provides the rugged structural endurance, 90 dB isolation shielding, and steady 50 Ohm matching required to unlock the full range of your hardware. To round out your installation gear, explore our full selection of premium RF Connectors and rugged Coaxial Cable Assemblies. You can also review the latest layout standards directly via the IEEE Official Resource Center to learn more about optimizing high-frequency setups. Upgrade your connection lines with this professional LMR400 jumper today, and secure the clean, long-range signal paths your systems were engineered to deliver.
