Ultra-Low Loss N-Type Male to SMA Male LMR400 50 Ohm Extension Cable

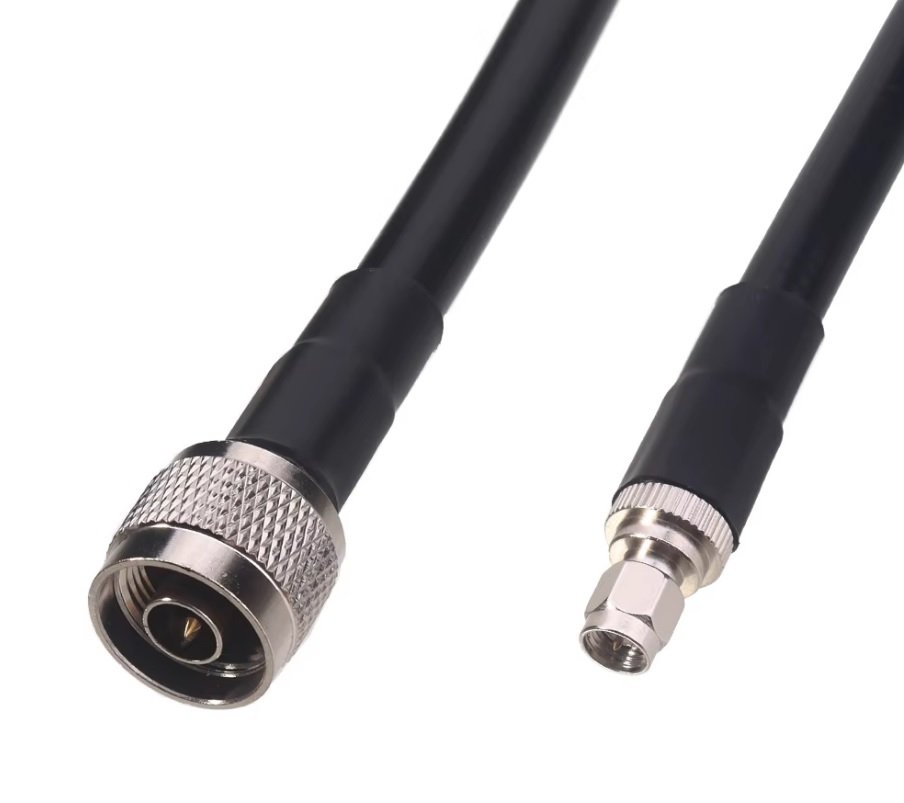

Bridging heavy-duty outdoor antenna hardware directly to indoor telecommunications equipment requires a rugged transmission line calibrated for minimal signal drop. The premium N-type Male to SMA Male LMR400 50 Ohm extension cable from OHM Cables provides an industrial-grade interconnect designed specifically to link high-gain outdoor antennas, 4G LTE/5G NR enterprise cellular gateways, GPS receivers, Helium miners, and RF test bench setups. Featuring an outdoor-rated N-Type Male plug on one end and a sub-miniature SMA Male plug on the other, this assembly eliminates the need for lossy adapter barrels while preserving signal power over long distances.

When routing high-frequency wireless signals—such as Mid-Band 5G (Sub-6 GHz), CBRS, or high-capacity Wi-Fi—standard light-gauge jumper lines like RG58 or RG174 introduce massive attenuation. These thin wires convert precious RF transmit and receive energy into heat, causing sluggish data throughput, increased packet errors, and dropped connections. Upgrading your wireless deployment with an N-type Male to SMA Male LMR400 equivalent cable bypasses these physical bottlenecks. Featuring a thick 10.3 mm profile, a solid copper-clad center conductor, and an advanced double-shield design, this cable delivers maximum signal strength down to your device port.

Core Engineering Advantages for High-Frequency Wireless Arrays

Selecting the correct cable geometry is critical for preserving throughput across long antenna runs. The OHM Cables N-type Male to SMA Male LMR400 high-performance extension provides distinct technical advantages over standard braided jumpers:

1. Ultra-Low Attenuation Across Microwave Bands

Boasting a heavy 10.3 mm (0.405-inch) physical footprint, the 400-series architecture drastically reduces skin-effect resistive losses. This thick conductor design ensures clean, high-amplitude signal transmission over 700 MHz, 2.5 GHz, and 3.5 GHz bands, making it the ideal choice for long drop lines from rooftop antennas down to indoor equipment racks.

2. Dual-Layer Shield Grid for 90 dB Isolation

Operating near noisy industrial machinery, high-density cellular towers, or crowded equipment rooms requires heavy shielding. This N-type Male to SMA Male LMR400 lead utilizes a dual-shield design: an inner layer of 100% coverage bonded aluminum foil blocks high-frequency electromagnetic interference (EMI), while a dense outer tinned copper braid provides exceptional structural integrity and low-frequency grounding, yielding an isolation rating greater than 90 dB.

3. Heavy-Duty Weatherproof Terminations

Outdoor mast connections are subject to UV exposure, thermal cycling, and rain. Our assemblies feature precision-machined solid brass connectors finished in durable nickel and gold plating. The N-Type Male coupling nut includes an integrated internal silicone O-ring to block water ingress, while dual-wall adhesive-lined heat shrink covers both connector junctions for strain relief and weatherproofing.

Advanced Materials & Long-Term Calibration Stability

Every component in the N-type Male to SMA Male LMR400 extension lead is engineered for long-term electrical stability under continuous service. The outer protective jacket is composed of UV-stabilized Polyethylene (PE), designed to endure intense solar radiation, freezing sub-zero temperatures, and severe weathering without cracking or absorbing moisture.

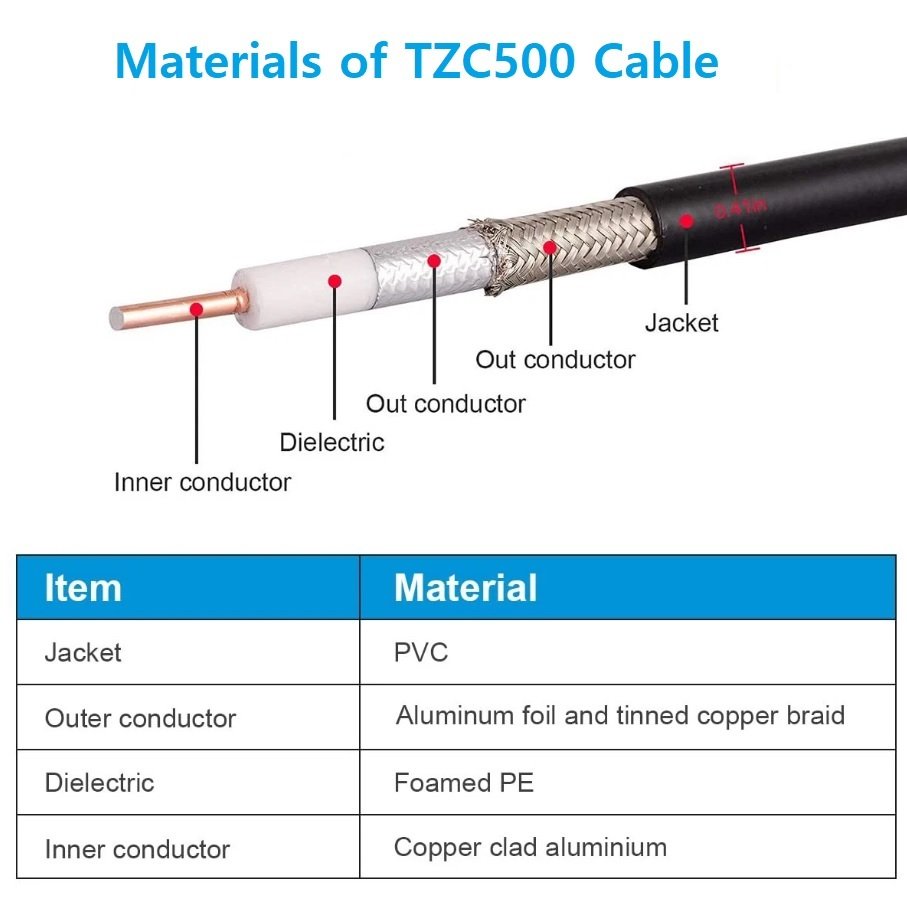

Internally, signals travel along a high-conductivity solid copper-clad aluminum center conductor insulated by a micro-cellular, gas-injected closed-cell foam polyethylene (FPE) dielectric. This advanced insulation profile yields a high velocity of propagation (85%), allowing RF signals to travel faster while minimizing internal dielectric loss.

Common Field Applications and Deployments

• 5G & 4G LTE Gateways: Connecting outdoor roof-mounted omni or directional antennas directly to indoor cellular routers equipped with SMA ports.
• Helium & IoT Base Stations: Serving as the main low-loss down-lead between outdoor 868 MHz / 915 MHz antennas and internal gateway modules.
• Fixed Wireless Access (FWA): Routing long-distance subscriber antenna signals directly to interior indoor processing units.
• GPS & Telemetry Systems: Linking active GPS antennas or remote radio transceivers directly to monitoring hardware.

Technical Specifications & Performance Metrics

Attenuation Profile (Loss per 10 meters / 32.8 feet)

• 700 MHz (Low-Band 5G / LTE): ~1.1 dB attenuation loss
• 900 MHz (Industrial Radio / ISM / Helium): ~1.3 dB attenuation loss
• 1800/2100 MHz (Core 4G LTE Bands): ~2.0 dB attenuation loss
• 2500 MHz (Mid-Band 4G/5G): ~2.4 dB attenuation loss
• 3500 MHz (5G C-Band / CBRS): ~2.9 dB attenuation loss
• 5800 MHz (High-Band Wi-Fi): ~3.9 dB attenuation loss

Why Choose OHM Cables Assemblies

At OHM Cables, we understand that a high-frequency communications system is only as reliable as its weakest connection point. We reject loose clearances, cheap flash platings, and low-grade braided wires that degrade over time. Every N-type Male to SMA Male LMR400 extension lead is assembled using specialized pneumatic tooling, precision hex-crimped, and sealed with dual-wall adhesive heat shrink tubing. Our strict quality control process ensures every cable is swept on vector network analyzers (VNAs) to verify correct VSWR and low insertion loss before leaving our facility.

Frequently Asked Technical Questions (FAQ)

What is the minimum bend radius of this LMR400 cable extension?

For safe field deployment, the minimum bend radius of this LMR400 equivalent cable is 25.4 mm (1.0 inch) for a single fixed bend, and 101.6 mm (4.0 inches) for repeated handling loops. Bending the cable past these limits can warp the internal foam dielectric, alter the $50 \Omega$ profile, and cause signal reflections.

Will this assembly work with RP-SMA (Reverse Polarity) hardware?

No. This cable uses standard SMA Male hardware (internal threads with a protruding center pin), which is standard for commercial cellular gateways, radio hardware, and industrial routers. Consumer Wi-Fi equipment often uses Reverse Polarity (RP-SMA) ports. Be sure to check your device interface before ordering.

Can I use this cable outdoors without extra weatherproofing?

Yes. The heavy-duty Polyethylene (PE) outer jacket is fully UV-stabilized for direct sunlight and weather exposure. However, for permanent outdoor mast setups, applying silicon seal tape over the mated N-type connector interface is recommended to prevent long-term moisture accumulation around the threads.

Final Verdict for Telecommunications Engineers & Network Builders

Do not let high insertion losses or thin, restrictive jumpers bottleneck your high-frequency cellular links and radio arrays. The OHM Cables premium N-type Male to SMA Male LMR400 low-loss extension cable provides the rugged physical durability, 90 dB isolation shielding, and steady 50 Ohm matching required to maximize your wireless performance. To complete your system setup, explore our full selection of premium RF Connectors and rugged Coaxial Cable Assemblies. You can also review high-frequency standards directly through the IEEE Official Resource Center. Upgrade your installation gear with this professional LMR400 extension today, and secure the clean, long-range signal paths your equipment was built to deliver.
