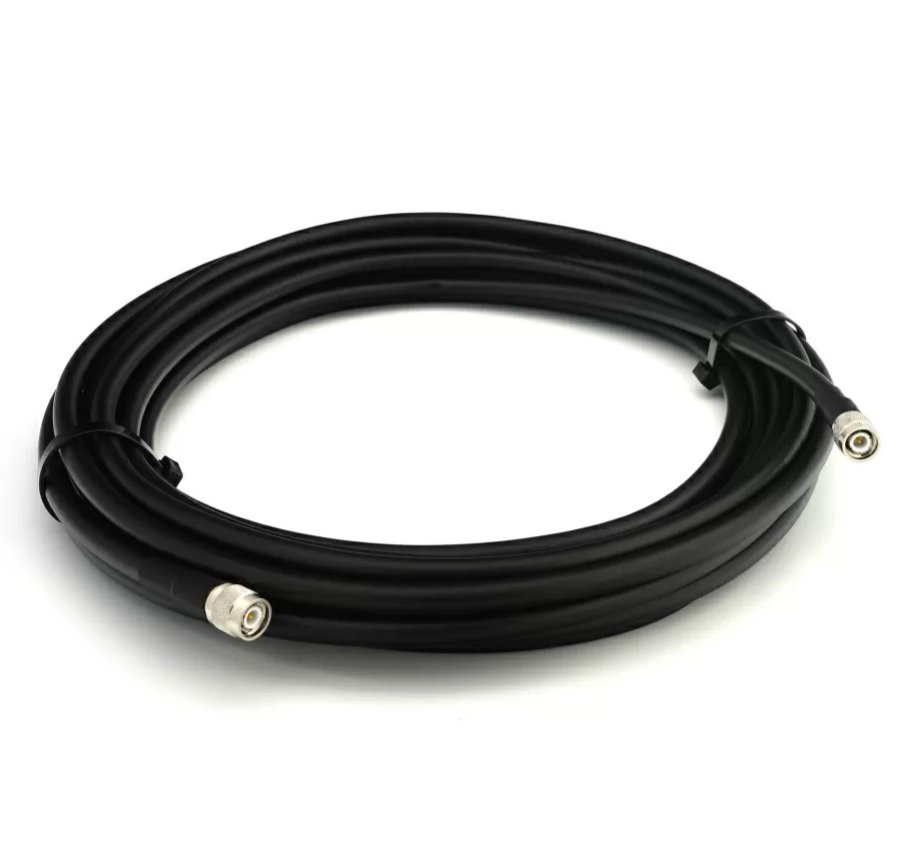

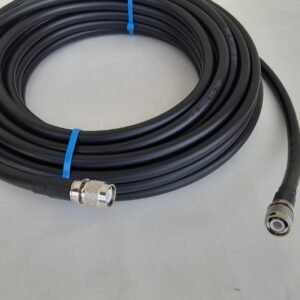

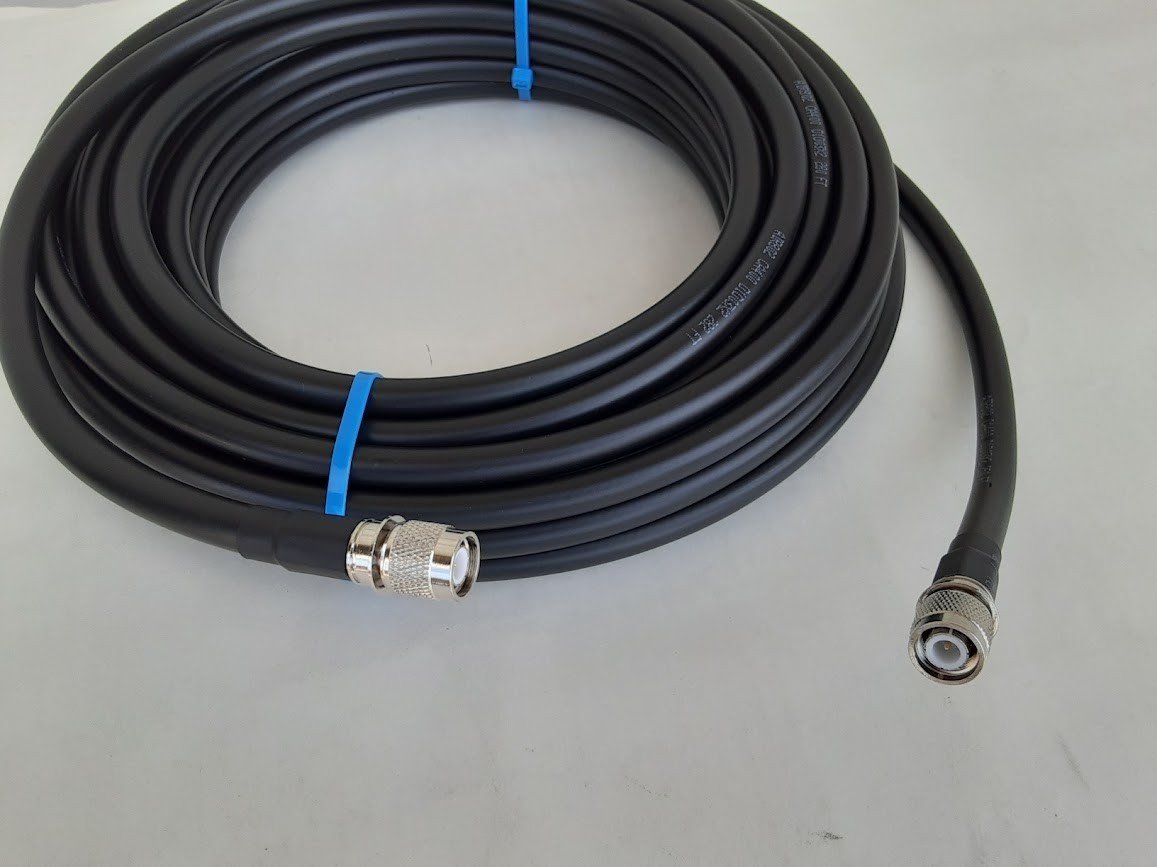

Ultra-Low Loss TNC Male to TNC Male LMR400 50 Ohm Coaxial Extension Cable

Ensuring robust signal transmission across high-vibration radio setups and long-distance antenna runs requires a heavy-duty coaxial line engineered to eliminate insertion losses. The premium TNC Male to TNC Male LMR400 50 Ohm coaxial extension cable from OHM Cables provides an industrial-grade interconnect designed specifically for tactical radios, high-precision GPS/GNSS receivers, cellular boosters, Wi-Fi base stations, and aerospace telemetry systems. Featuring threaded TNC Male connectors on both ends, this high-spec assembly guarantees a secure, vibration-proof link between outdoor antennas, surge arrestors, and indoor transceiver equipment.

Standard light-gauge patch cords—such as RG58, RG223, or RG142—introduce severe attenuation when deployed at higher frequencies like 1.5 GHz (GPS), 2.4 GHz (Wi-Fi), or 3.5 GHz (5G C-Band). Thin jumper wires convert valuable RF transmit power into heat, causing sluggish data rates, packet errors, and reduced signal range. Upgrading your RF architecture with a heavy-duty TNC Male to TNC Male LMR400 equivalent assembly bypasses these physical throughput bottlenecks. Built with a solid copper-clad core, micro-cellular gas-injected foam dielectric, and a double-shield matrix, this line guarantees maximum signal strength and exceptional signal-to-noise ratios (SNR).

Core Engineering Advantages for High-Frequency Wireless Arrays

Selecting the proper cable architecture is essential for long-term network reliability and minimal signal degradation. The OHM Cables TNC Male to TNC Male LMR400 high-performance extension provides significant technical benefits over standard braided jumpers:

1. Ultra-Low Attenuation Across High-Frequency Bands

Featuring a heavy 10.3 mm (0.405-inch) physical footprint, the 400-series cable architecture drastically reduces resistive skin-effect losses. This heavy-gauge conductor layout ensures clean, high-amplitude wave propagation across sub-6 GHz spectrums, making it the superior choice for long down-leads from roof-mounted antennas down to indoor equipment cabinets.

2. Dual-Layer Shield Grid for 90 dB RF Isolation

Operating near noisy industrial machinery, crowded cellular towers, or multi-transmitter radio racks requires exceptional shielding. This TNC Male to TNC Male LMR400 cable utilizes a multi-layer shielding matrix: an inner layer of 100% coverage bonded aluminum foil blocks high-frequency electromagnetic interference (EMI), while a secondary dense tinned copper wire braid delivers outstanding grounding and low-frequency shielding, yielding an isolation rating greater than 90 dB.

3. Heavy-Duty Weatherproof Terminations

Outdoor mast and mobile installations face constant temperature cycling, UV exposure, and rain. Our assemblies feature solid brass TNC connectors precision-machined and finished in durable nickel and gold plating. Internal silicone O-rings seal out moisture at the mating interface, while dual-wall adhesive-lined heat shrink tubing covers both connector transitions for robust strain relief and weatherproofing.

Advanced Materials & Structural Reliability

Every structural layer of the TNC Male to TNC Male LMR400 assembly is selected to guarantee steady electrical performance over decades of continuous outdoor and mobile service. The outer protective sheath is constructed from a rugged, UV-stabilized Polyethylene (PE) compound, engineered to withstand intense solar radiation, sub-zero climates, and heavy physical stress without cracking or absorbing moisture.

Internally, signals travel along a high-conductivity solid copper-clad aluminum center conductor insulated by a micro-cellular, gas-injected closed-cell foam polyethylene (FPE) dielectric. This advanced insulation profile yields a high velocity of propagation (85%), ensuring fast, phase-stable signal transmission while lowering internal capacitive loss.

Common Field Applications and Deployments

• High-Precision GNSS / GPS Surveying: Linking outdoor reference station antennas directly to precision GPS receivers and timing modules.
• Tactical & Commercial Two-Way Radio: Serving as a low-loss jumper to connect UHF/VHF transceivers and amplifiers to tower-mounted antenna systems.
• Cellular & Wireless Base Stations: Bridging outdoor antenna drops to interior surge arrestors and enterprise wireless routers.
• Marine & Vehicular Telemetry: Providing vibration-proof, low-loss RF interconnects for mobile command centers, ships, and heavy machinery arrays.

Technical Specifications & Performance Metrics

Attenuation Profile (Loss per 10 meters / 32.8 feet)

• 700 MHz (Low-Band 5G / LTE): ~1.1 dB attenuation loss
• 900 MHz (Industrial Radio / ISM): ~1.3 dB attenuation loss
• 1575.42 MHz (GPS L1 Band): ~1.8 dB attenuation loss
• 1800/2100 MHz (Core 4G LTE Bands): ~2.0 dB attenuation loss
• 2400 MHz (Wi-Fi / ISM Band): ~2.4 dB attenuation loss
• 3500 MHz (5G C-Band / CBRS): ~2.9 dB attenuation loss
• 5800 MHz (High-Band Wi-Fi): ~3.9 dB attenuation loss

Why Choose OHM Cables Assemblies

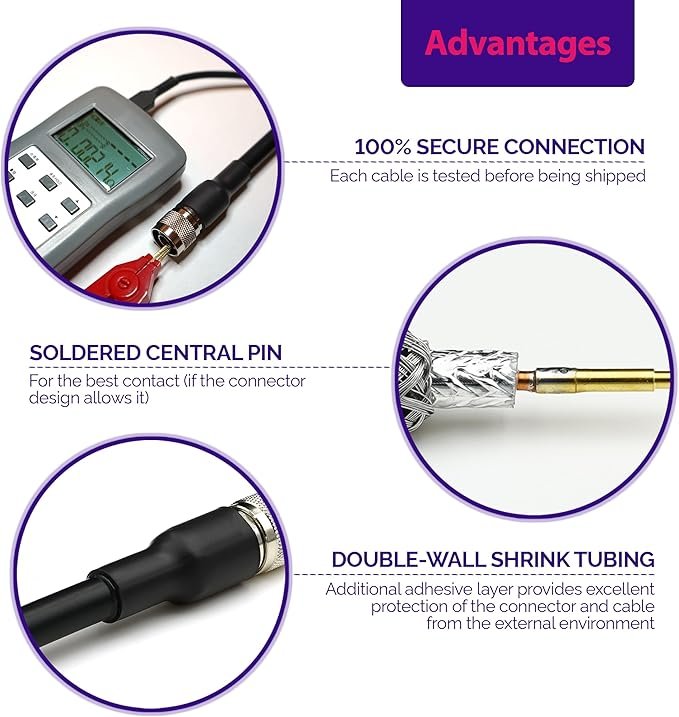

At OHM Cables, we understand that a high-frequency communications system is only as reliable as its weakest connection point. We reject loose clearances, cheap flash platings, and low-grade steel braids that oxidize under outdoor exposure. Every TNC Male to TNC Male LMR400 extension lead is built using specialized pneumatic tooling, precision hex-crimped, and sealed with dual-wall adhesive heat shrink tubing. Our strict quality guidelines ensure every assembly is fully tested on vector network analyzers (VNAs) to verify perfect VSWR and low insertion loss before shipment.

Frequently Asked Technical Questions (FAQ)

What is the difference between TNC and BNC connectors?

While both connector types share similar pin dimensions, BNC utilizes a quick-twist bayonet locking mechanism, whereas TNC uses a fine screw thread. The threaded interface of the TNC Male connector prevents signal leakage caused by mechanical shock and vibration, allowing it to perform reliably up to 6 GHz compared to BNC’s typical 2–4 GHz limit.

What is the minimum bend radius of this LMR400 jumper cable?

For safe field deployment, the minimum bend radius of this LMR400 equivalent cable is 25.4 mm (1.0 inch) for a single fixed bend, and 101.6 mm (4.0 inches) for repeated handling loops. Bending the cable beyond these thresholds can warp the micro-cellular foam dielectric, alter the $50 \Omega$ profile, and cause immediate signal reflections.

Will this assembly work with RP-TNC (Reverse Polarity) hardware?

No. This cable uses standard TNC Male connectors (internal threads with a protruding center pin), which is standard for commercial radios, GPS systems, and cellular infrastructure. Some Wi-Fi access points use Reverse Polarity TNC (RP-TNC) ports. Be sure to check your device interface prior to ordering.

Final Verdict for Telecommunications Engineers & Network Builders

Do not let high insertion losses or loose, unthreaded jumpers bottleneck your high-frequency radio links and GPS arrays. The OHM Cables premium TNC Male to TNC Male LMR400 low-loss extension cable provides the rugged physical durability, 90 dB isolation shielding, and steady 50 Ohm matching required to maximize your wireless performance. To complete your system setup, explore our full selection of premium RF Connectors and rugged Coaxial Cable Assemblies. You can also review high-frequency standards directly through the IEEE Official Resource Center. Upgrade your installation gear with this professional LMR400 extension today, and secure the clean, long-range signal paths your equipment was built to deliver.
