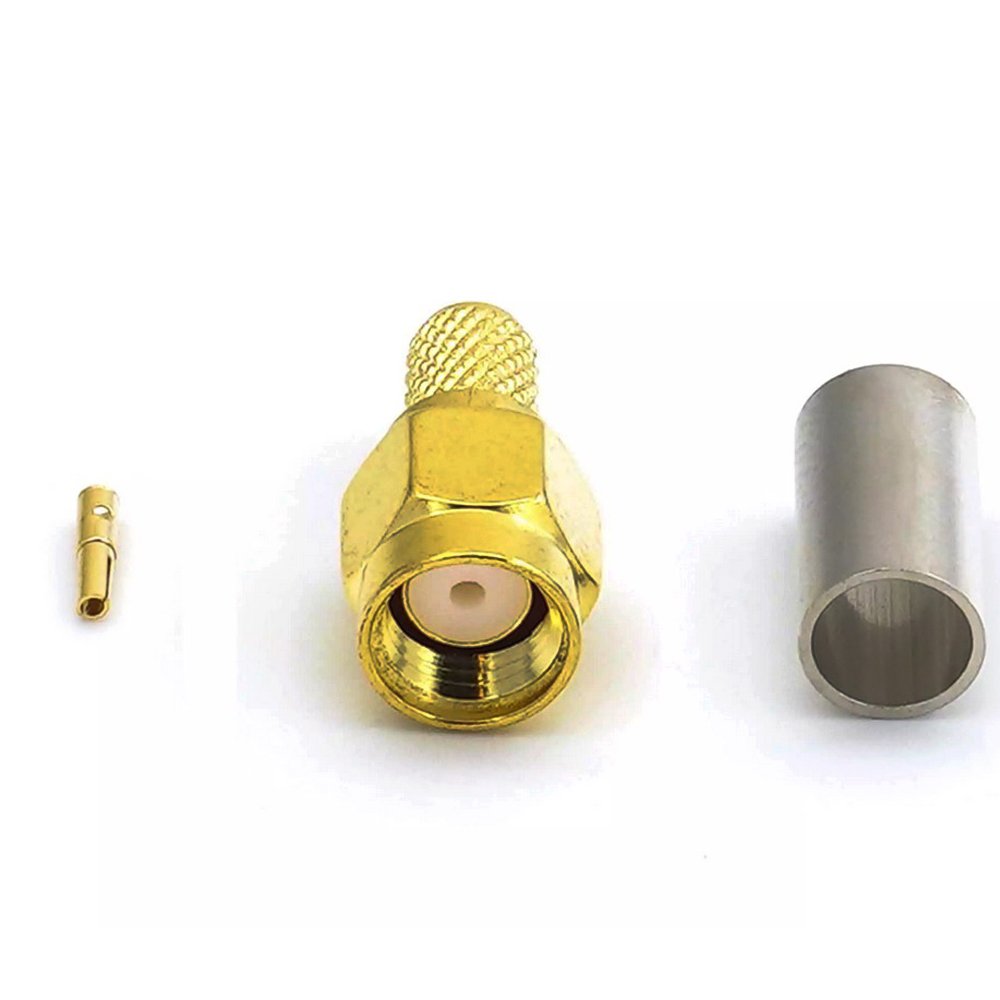

RP-SMA Male Connector Crimping for RG58 Cable – Straight RF Coaxial Plug

Introduction to the RP-SMA Male Connector

The RP-SMA Male Connector Crimping for RG58 Cable is a precision-engineered, straight RF coaxial plug designed specifically for RG58 coaxial cables with 50-ohm impedance. It offers reliable, low-loss connections in wireless communication systems, antennas, and RF equipment. The Reverse Polarity SMA (RP-SMA) design is commonly used to prevent mating with standard SMA connectors, ensuring device compatibility and enhanced security in wireless setups.

Key Features and Technical Specifications

Electrical and Frequency Performance

• Impedance: 50 Ohms, matched to RG58 coaxial cable to ensure signal reliability and minimize losses.
• Frequency Range: Operates effectively from DC up to 18 GHz, suitable for a wide variety of RF and microwave applications.
• Contact Resistance: Center contact resistance typically below 3 milliohms and outer contact below 2.5 milliohms for optimal signal transfer.
• Insertion Loss: Less than 0.15 dB at 6 GHz, maintaining high signal integrity.
• Voltage Rating: Working voltage up to 335V RMS and withstand voltage of 1000V RMS for robust operation.

Mechanical and Material Specifications

• Connector Body: High strength brass, usually gold-plated for enhanced conductivity and corrosion resistance.
• Center Pin: Made of brass or beryllium copper, gold plated to prevent oxidation and maintain low resistance.
• Insulator: PTFE (Teflon) insulation provides high dielectric strength and temperature stability.
• Durability: Rated for more than 500 connect-disconnect cycles, ensuring long-term reliability.
• Operating Temperature Range: -55°C to +155°C, suitable for harsh indoor and outdoor environments.
• Compliance: Meets standards such as CECC 22110, MIL-C-39012, IEC 60169-15, and is RoHS compliant.

Design and Construction

Reverse Polarity SMA Connector Details

The RP-SMA Male Connector features a female threaded outer body with a protruding male center pin, the reverse of the standard SMA gender arrangement. This design prevents accidental mating with standard SMA connectors, making it popular in wireless security-sensitive applications such as Wi-Fi devices, hotspots, and telemetry systems.

Crimp Termination for RG58 Cable

The connector is designed to be crimped onto RG58 coaxial cable, ensuring a sturdy mechanical and electrical bond between the cable and the connector. Crimping provides consistent shielding and minimal signal loss by tightly securing the cable’s shield and central conductor.

Applications and Use Cases

Wireless Communications and Networking

RP-SMA Male Connectors are widely adopted in Wi-Fi routers, wireless access points, and antennas to offer secure, low-interference connections. Their reverse polarity ensures compliance with regulatory requirements prohibiting easy antenna substitution.

Radio Frequency and IoT Systems

These connectors are used in IoT devices, telemetry systems, and portable radios requiring compact, durable connections suited for reliable RF communication, often in confined spaces.

Laboratory and Test Equipment

The high-frequency stability and low insertion loss make RP-SMA Male connectors suitable for RF test setups, spectrum analyzers, and signal generators, where precision and repeatability are crucial.

Installation and Crimping Recommendations

Using proper crimp tools matched to RG58 cable diameter is essential for a secure connection. Follow the manufacturer’s guidelines for crimp die size and sequence. Proper torque application when mating connectors prevents damage and ensures enduring contact quality. If available, use crimping kits designed for RP-SMA connectors to optimize performance and reliability.

SEO Optimization and Keyword Strategy

This description strategically includes the focus keyword RP-SMA Male Connector in the H1, H2, and H3 headers as well as throughout the descriptive content. The formatting emphasizes readability and engagement while targeting search engines effectively.

Related Products and Internal Links

• RG58 Coaxial Cable
• RP-SMA Female Connector
• Wireless Antennas

Additional Resources and External Links

• Pasternack RP-SMA Male Connector Datasheet
• SMA Connector – Wikipedia
• Understanding Reverse Polarity SMA

Conclusion and Purchase Options

The RP-SMA Male Connector Crimping for RG58 Cable is a premium-quality, durable, and high-performance RF connector tailored for demanding wireless and RF communication applications. Its robust construction, wide frequency range, and compatibility with RG58 cables make it a trusted component in professional and consumer environments alike. For more information or to place an order, contact us or add to cart now to secure this reliable connection solution for your RF project needs.
