RP-SMA Female Connector Crimping for RG58 Cable – Straight RF Coaxial Jack

Overview of the RP-SMA Female Connector

The RP-SMA Female Connector Crimping for RG58 Cable is a precision-engineered RF connector designed to deliver reliable wireless connectivity with minimal signal loss. Featuring a straight jack design and Reverse Polarity SMA female interface, this connector is ideal for professional and DIY applications requiring stable coaxial connections. Specifically optimized for RG58 coaxial cable with 50-ohm impedance, it supports a frequency range up to 6 GHz, making it suitable for Wi-Fi antennas, wireless networking equipment, SDR radios, and various RF systems.

Design and Construction Details

Durable Materials and Build Quality

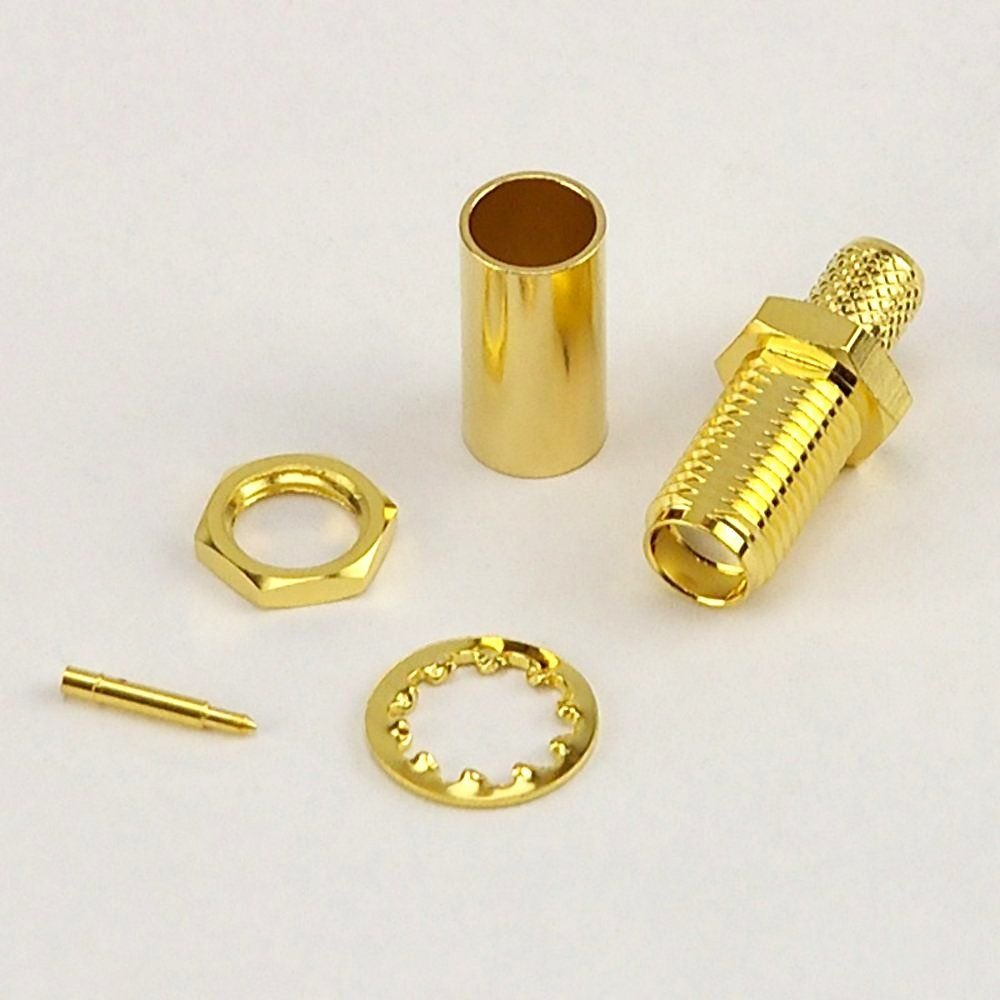

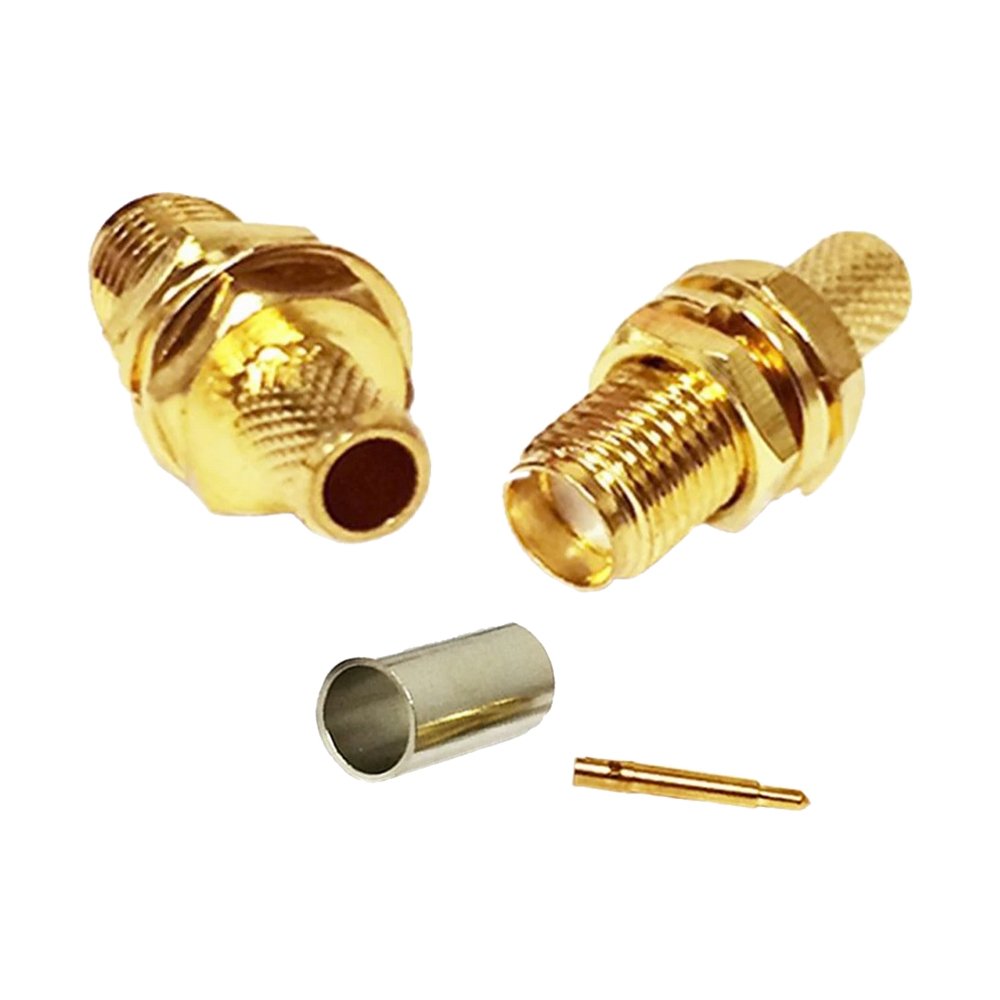

This connector is fabricated mostly of brass with gold or nickel plating, providing excellent corrosion resistance and superior conductivity. The RP-SMA female design includes an internal threaded shell housing a protruding center pin, ensuring compatibility with RP-SMA male connectors. The PTFE dielectric helps maintain signal purity and minimizes insertion loss.

Crimping Interface for RG58 Cable

The crimping mechanism guarantees a tight and secure mechanical and electrical connection to the RG58 coaxial cable. Its design ensures that both the cable shield and center conductor are properly terminated to reduce signal leakage and electromagnetic interference (EMI). Proper crimping technique is essential for maintaining optimal electrical performance and connector longevity.

Technical Specifications and Performance

Electrical and Mechanical Characteristics

• Impedance: 50 Ohms, optimized for RG58 cable.
• Frequency Range: DC to 6 GHz suitable for various wireless communication standards.
• Durability: Rated for more than 500 connection cycles.
• Operating Temperature Range: -55°C to +155°C, suitable for indoor and outdoor environments.
• Contact Resistance: Less than 2 milliohms to ensure signal integrity.
• Insulation Resistance: Greater than 5 Gigaohms, which prevents signal loss and crosstalk.

Applications and Industry Usage

Wireless Communications

This RP-SMA female connector is widely used in wireless communication devices such as Wi-Fi routers, access points, and antennas. Its straight jack design helps simplify cable runs in setups where linear cable paths are feasible, providing ease of installation and maintenance.

Software Defined Radios (SDR) and RF Testing

SDR enthusiasts and professionals use this connector for precise, low-loss RF signals in modems, receivers, and testing equipment. Its solid mechanical and electrical connection makes it well suited for laboratory and field measurements.

Industrial and Outdoor Applications

The durable build and wide temperature rating ensure that this connector performs reliably in challenging industrial conditions and outdoor installations where moisture and temperature swings are prevalent.

Installation and Crimping Best Practices

Proper crimping of the RP-SMA Female Connector to RG58 cable is crucial to achieving its full performance potential. Using high-quality crimping tools specific for RG58 cable and following manufacturer torque specifications ensures mechanical reliability and consistent electrical contact. Improper installation can lead to degraded signal quality, connector damage, or premature failure.

SEO Optimization and Keyword Placement

This product description leverages the RP-SMA Female Connector focus keyword across its most important headings (H1, H2, H3) and throughout the detailed content. By integrating the keyword naturally and using clear, scannable sections, it enhances SEO relevance while maintaining an engaging and informative user experience.

Related Products and Internal Links

• RG58 Coaxial Cable
• RP-SMA Male Connector
• Wireless Antennas

External Resources and Further Reading

• Pasternack RP-SMA Female Connector Datasheet
• SMA Connector – Wikipedia Overview
• Understanding RP-SMA Connectors

Conclusion and Ordering Information

The RP-SMA Female Connector Crimping for RG58 Cable is an indispensable component for anyone working with RF wireless systems who needs reliable, low-loss connections in a straight jack format. Its robust design, industry-grade materials, and ease of installation make it suited for both commercial and hobbyist applications. To purchase or learn more, contact us or add to cart today for high-quality connectors and accessories that meet your RF connectivity needs.
