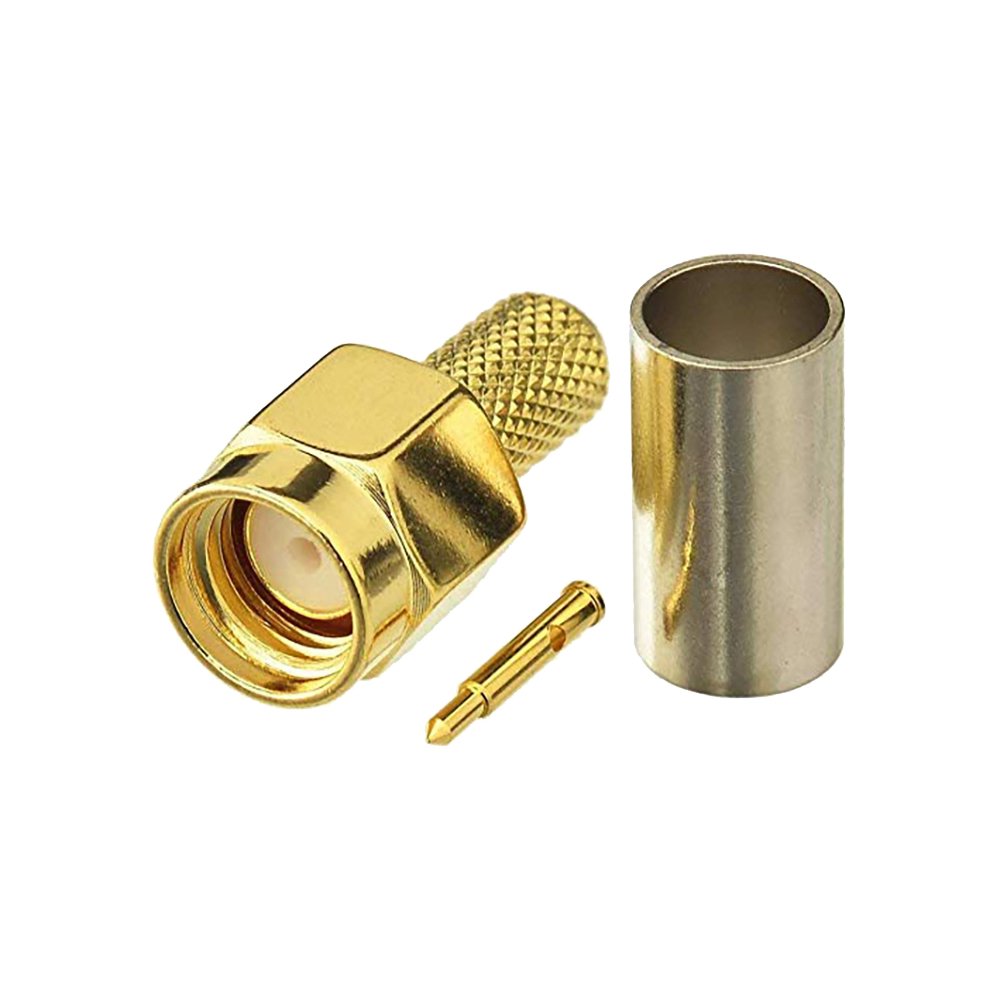

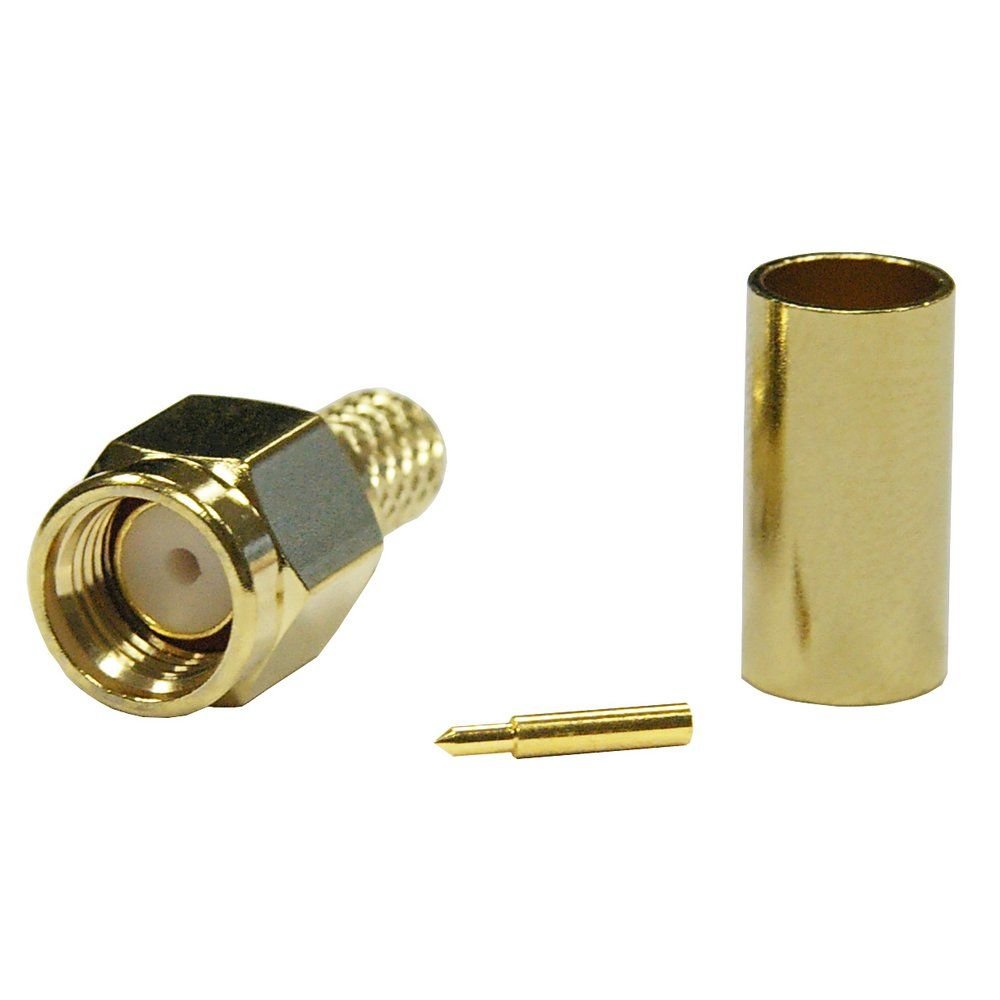

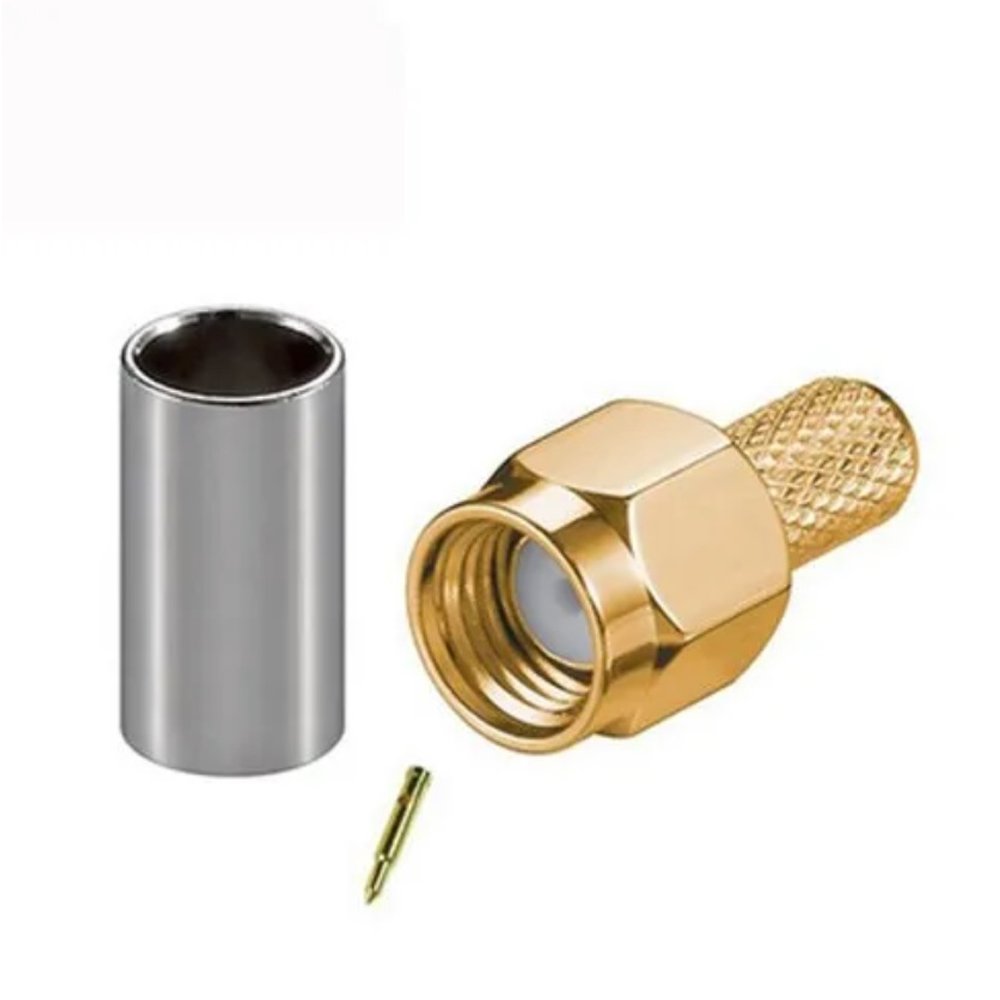

SMA Male Connector Crimping for RG58 Cable – Straight RF Coaxial Plug
Introduction to SMA Male Connector
The SMA Male Connector Crimping for RG58 Cable is a high-performance RF coaxial plug designed for reliable, low-loss connections in wireless communication and RF systems. With a precise 50-ohm impedance match for RG58 cable, this straight connector provides excellent electrical continuity and mechanical stability, supporting applications from consumer networking equipment to professional RF testing devices. Its construction and design meet industry standards for durability and signal integrity.
Technical Specifications and Electrical Performance
Frequency and Impedance
- Operates from DC to 18 GHz, making it suitable for a broad range of RF and microwave applications.
- Maintains 50-ohm characteristic impedance matching RG58 cable specifications, minimizing reflection and insertion losses.
Material and Mechanical Attributes
- Constructed from brass or stainless steel with gold or nickel plating to provide corrosion resistance and excellent conductivity.
- Center pin usually made of beryllium copper, gold-plated for oxidation protection and minimal contact resistance.
- Durable PTFE insulator for optimal dielectric stability and high breakdown voltage.
- Rated for over 500 mating cycles, ensuring long-lasting mechanical and electrical performance.
- Works reliably in operating temperature ranges from -55°C to +155°C.
Electrical Characteristics
- VSWR typically less than 1.23 up to 18 GHz, preserving signal integrity.
- Insertion loss minimized to below 0.15 dB in the operational frequency range.
- Contact resistance below 3 milliohms for center conductor, ensuring efficient signal transfer.
- Dielectric Withstanding Voltage rated at 1000 VRMS, providing high electrical safety margin.
Connector Design and Crimping Features
Mechanical Design
The SMA Male Connector features a threaded coupling nut with 36 threads per inch, a hex size of 5/16 inch (7.9 mm) providing compatibility with common wrench sizes. The male interface includes a center pin that fits into the counterpart female connector ensuring secure metal-to-metal contact and minimal signal degradation. Its straight body geometry aids in straightforward cable routing and installation.
Crimping with RG58 Cable
The connector is crimped to RG58 cable providing a solid mechanical and electrical connection. Crimping the ferrule tightly ensures the cable’s shield makes consistent contact with the connector body, improving shield effectiveness and overall RF performance. Accurate preparation, including precise stripping and clean conductor placement, combined with correct tooling, is crucial for optimal crimp performance.
Applications and Industry Use Cases
Wireless Communication Equipment
Ideal for wireless routers, access points, and other communication devices requiring durable and high-frequency compatible connectors, the SMA Male Connector supports stable connectivity in networks demanding low reflection and loss.
Test and Measurement Instruments
Widely used in RF testing and laboratory equipment, SMA connectors ensure measurement accuracy thanks to their low VSWR and wide bandwidth, providing consistent replicable results in test environments.
Industrial and Aerospace Applications
Given their robust mechanical design and environmental resistance, SMA Male Connectors are deployed in harsh conditions including aerospace telemetry, defense communication systems, and industrial automation requiring rugged reliability.
Installation and Best Practices
Preparation
Ensure RG58 cables are stripped to precise lengths as recommended by connector manufacturers to avoid signal loss or damage. Clean cables are essential to maintain quality connections.
Crimping Procedure
Use crimp tools appropriate for the RG58 cable diameter. First insert the cable into the connector, then use the crimper to secure the ferrule to the cable shield, followed by crimping the center contact for the cable conductor. Apply correct torque when mating connectors, typically between 7-10 inch-pounds, to prevent damage.
Testing
Post-installation, verify connection integrity with RF test equipment such as network analyzers to check parameters like VSWR and insertion loss to confirm optimal performance.
SEO Optimization with Focus Keyword Integration
The content consistently uses the focus keyword SMA Male Connector within H1, H2, and H3 headers as well as organically in the descriptive text, enhancing search engine visibility. The structure with clear headers and detailed sections improves readability and user engagement, aligned with SEO best practices.
Related Products and Internal Linking
Additional Resources and References
Conclusion and Ordering Information
The SMA Male Connector Crimping for RG58 Cable offers unmatched reliability and electrical precision, making it an essential component for wireless communication, RF testing, and industrial applications. Designed to ensure optimal signal transfer and durability, it meets the needs of professionals and enthusiasts alike. Contact us or add this connector to your cart today to enhance your RF connectivity with confidence.
