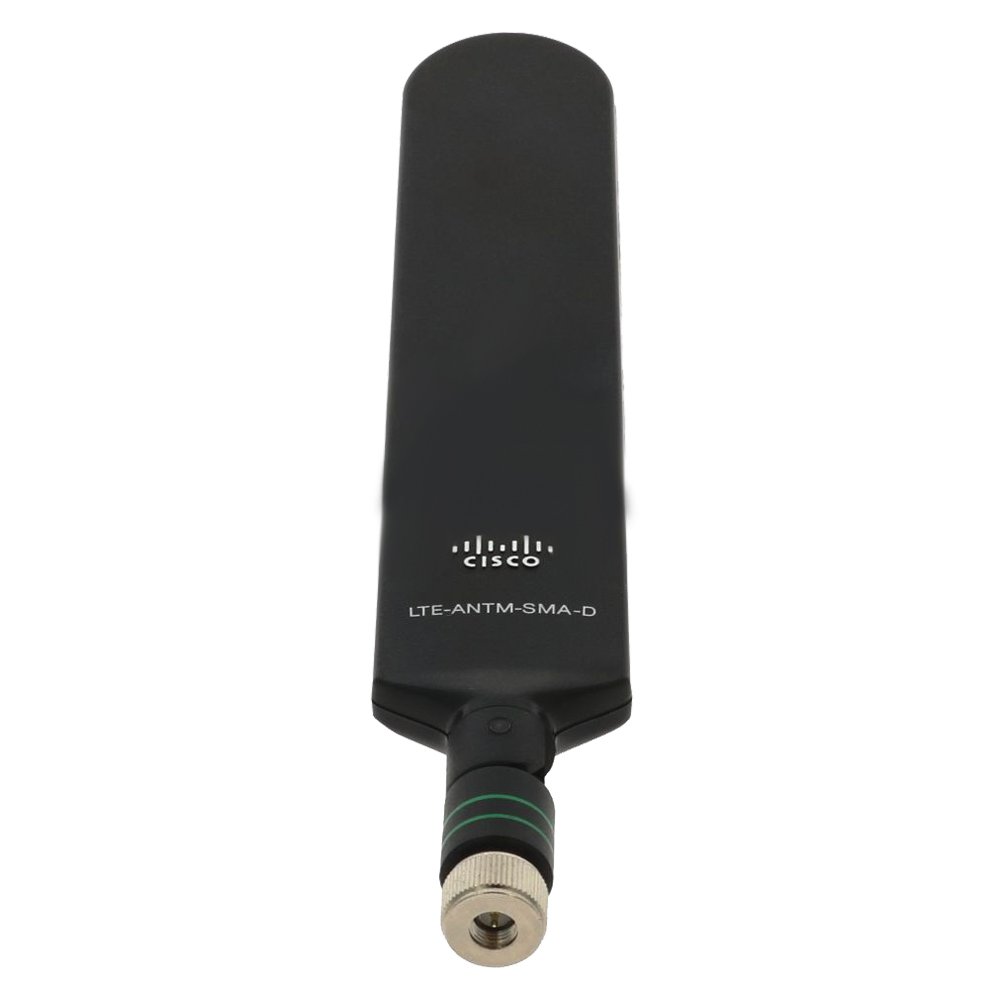

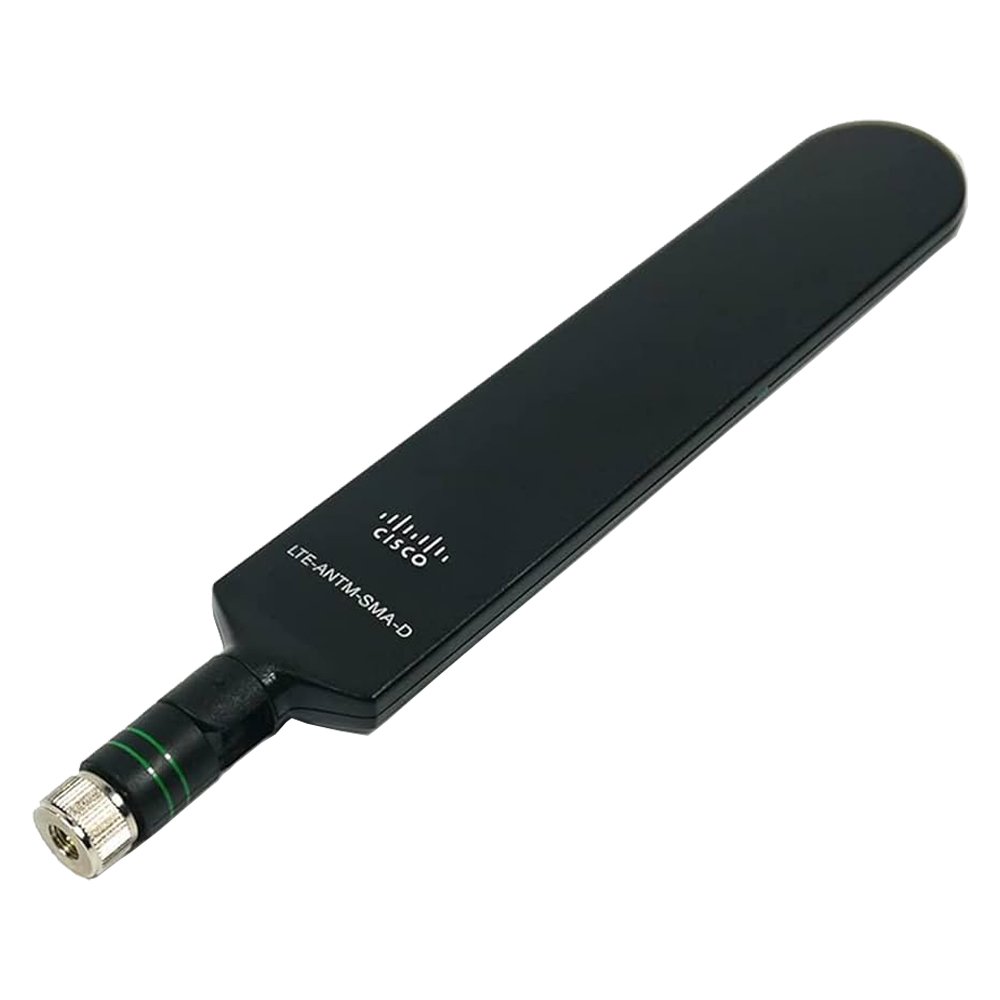

CISCO 4G Antenna SMA Male Connector – LTE-ANTM-SMA-D LTE SMA Dipole Antenna

Introduction to CISCO 4G Antenna

The CISCO 4G Antenna LTE-ANTM-SMA-D is a purpose-built, high-performance omnidirectional dipole antenna designed to enhance 4G LTE cellular connectivity for Cisco routers and modules. Equipped with a reliable SMA male connector, the antenna provides seamless integration with LTE-ANTM-SMA-D compatible devices, delivering exceptional signal reception and transmission across multiple frequency bands. This antenna supports 4G LTE Advanced (LTEA) and legacy 3G networks, making it a versatile solution for a wide range of wireless communication needs.

Technical Specifications

Frequency Bands and Coverage

• Supports multiple frequency ranges: 698-960 MHz, 1448-1511 MHz, and 1710-2690 MHz.
• Compatible with 3G, 4G LTE, LTE Advanced, and LTE Advanced Pro networks, ensuring broad connectivity.
• Omnidirectional radiation pattern allows 360-degree coverage, ideal for indoor installations.

Gain and Signal Performance

• Standalone antenna peak gain reaches up to 3.7 dBi in the highest frequency bands, amplifying signal strength.
• Designed to maintain high efficiency even when mounted on small or medium-size Cisco routers and chassis.
• Maintains a low Voltage Standing Wave Ratio (VSWR) with values ≤ 2.0 in key frequency bands to minimize reflection losses.

Mechanical and Environmental Specifications

• Compact dimensions: Approximately 9 inches (229 mm) in length, 1.46 inches (37 mm) in width, and 0.43 inches (11 mm) in depth.
• Lightweight design at 56.8 grams, contributing to easy handling and installation.
• Operates reliably in extreme temperatures from -30°C to +70°C and withstands storage temperatures from -40°C to +85°C.

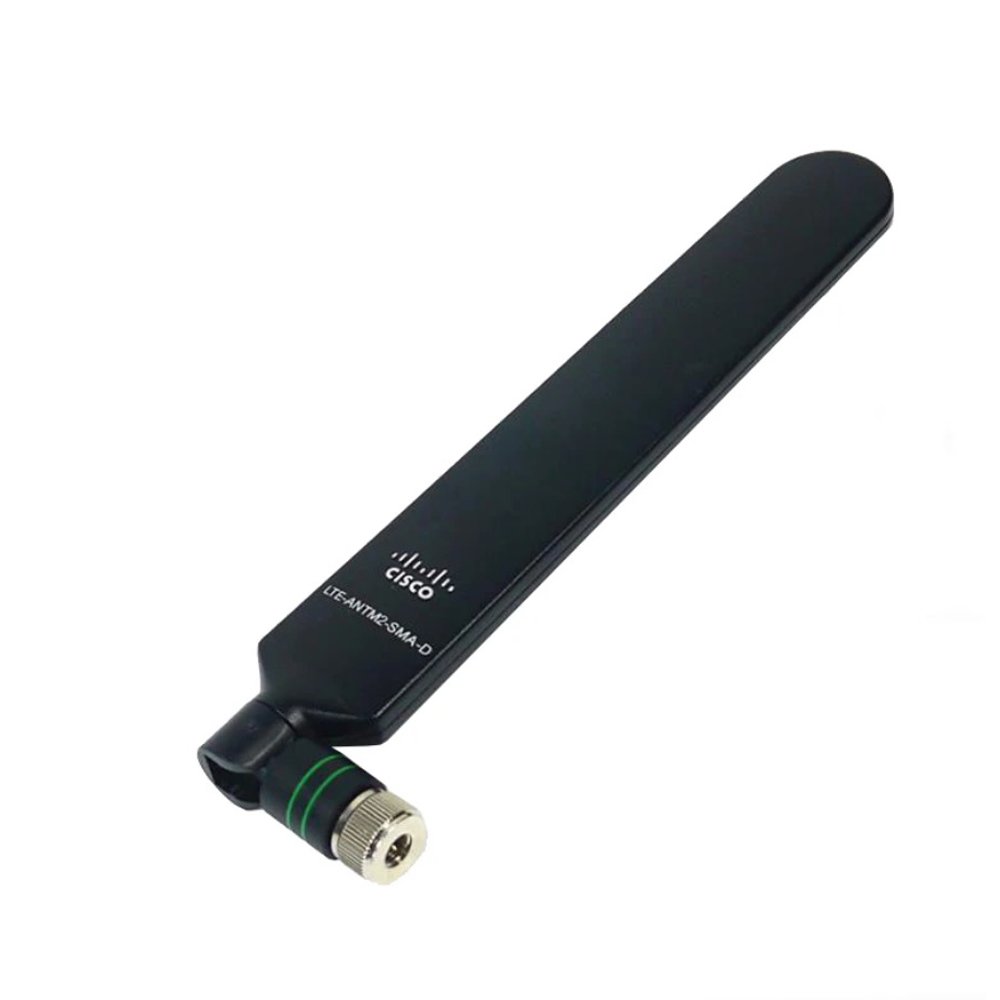

• Equipped with an articulating joint allowing installation at 0°, 45°, or 90° angles for flexible mounting options.

Design Features and User Benefits

Connector and Mounting

The LADP antenna incorporates a male SMA connector featuring rotational frictional torque to prevent accidental disconnects while being more user-friendly than traditional hex nut connectors. This ensures the longevity and reliability of the antenna’s connection to the router or module.

Durability and Build Quality

Robust construction using high-quality materials ensures the antenna withstands the rigors of indoor and protected outdoor environments. Its design supports continuous operation under tough environmental conditions while maintaining signal integrity.

Optimal Installation Flexibility

The adjustable articulating joint caters to diverse mounting needs, allowing users to optimize antenna orientation for best signal reception relative to the installation environment and surrounding obstructions.

Applications of CISCO 4G Antenna LTE-ANTM-SMA-D

Enterprise and Industrial Wireless Networks

This antenna is a preferred choice for enhancing cellular connectivity in enterprise routers deployed in office complexes, industrial plants, and remote monitoring stations, backed by Cisco’s networking reliability.

Mobile and Fixed Wireless Broadband

Its high gain and multi-band support facilitate broadband connectivity in mobile and fixed wireless applications, including transportation, IoT gateways, and digital signage requiring stable LTE links.

Public Safety and Critical Communications

Reliable and resilient, the antenna supports mission-critical communication setups for public safety devices leveraging 4G LTE networks.

Installation Guidelines and Best Practices

Mounting Recommendations

Mount the antenna in a location free from large metal surfaces to maximize gain and minimize interference. Select an angle suited to the deployment scenario using the articulating joint feature.

Connector Handling

Ensure the SMA male connector is securely fastened to the device without over-tightening. Regularly inspect the connection points to maintain optimal electrical contact.

Environmental Protection

For harsh or outdoor environments, seal connectors with weatherproofing materials and avoid exposure to direct precipitation to protect the antenna’s performance lifespan.

SEO Optimization & Focus Keyword Integration

Throughout this comprehensive description, the CISCO 4G Antenna focus keyword is incorporated strategically in the H1, H2, and H3 headers and naturally within the content. This supports excellent Rank Math keyword density and overall SEO ranking, ensuring discoverability and relevance for users searching for LTE antennas compatible with Cisco devices.

Related Products and Accessories

• Cisco Router Modules
• 4G LTE Routers
• Additional LTE Antennas

External Resources and Documentation

• CISCO Official LTE Antenna Documentation
• Product Specifications & Installation Guides
• Cisco Community LTE Antenna Best Practices

Conclusion

The CISCO 4G Antenna LTE-ANTM-SMA-D with an SMA male connector offers unparalleled connectivity enhancement for Cisco LTE and LTEA routers and modules. Its multi-band support, robust design, and articulation features make it an ideal choice for a wide range of industrial, commercial, and mission-critical wireless applications. Designed to meet Cisco’s high standards, it seamlessly integrates into your network infrastructure to boost cellular performance and reliability. For inquiries or purchases, please contact us or add this antenna to your cart today and experience superior 4G connectivity.
